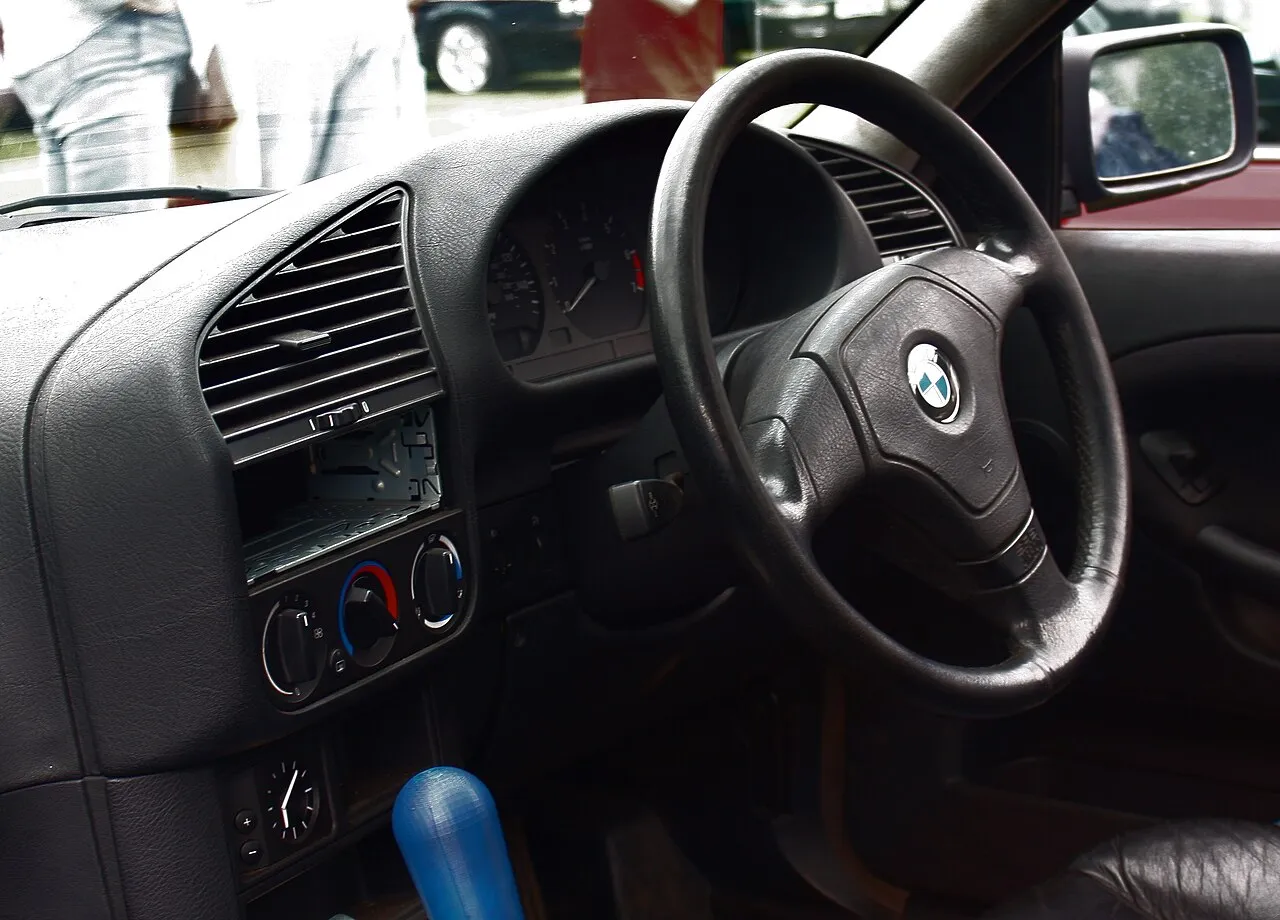

BMW E36 Dashboard Removal and Replacement: A Comprehensive Restoration Guide

TL;DR


What:	Removing and refitting the E36 dashboard (instrument panel).
Why:	Replacing a cracked dash, a full interior restoration, or access to wiring and the heater box.
Not needed for:	Replacing the heater core. Bentley’s procedure does that from under the dash with the console and lower trim removed.
Difficulty:	4/5. Mechanically simple, but two airbags, many connectors, and steering column shear bolts that must be drilled out.

Disconnect the negative battery cable and insulate the terminal before starting.
Bentley says to wait 10 minutes after disconnecting the battery before working on airbag parts, so the SRS module’s reserve power can discharge.
Store removed airbags facing up (horn pad or cover up) in a safe place. Bentley warns that an airbag stored face down can be thrown violently if it deploys by accident.
Once the steering wheel is off, don’t turn the airbag contact reel. It locks in its centre position and must stay there.

Battery: disconnect the negative cable.
Centre console out.
Glove compartment out.
Lower dash trim panels, left and right.
Driver and passenger airbags out (see above).
Steering wheel: wheels straight ahead; remove the centre bolt, mark the wheel’s position on the column shaft, turn the ignition on to unlock the steering, and pull the wheel off.
Driver’s knee bolster.
Instrument cluster.
Switches: headlight switch, turn-signal and wiper stalks.
Heating/AC control head and module.
Radio.
A-pillar trims, both sides.
Steering column: remove the reinforcement bar below the column and the column shear (headless) bolts. They have to be drilled out and replaced with new ones on reassembly. Lower the column only slightly and support it: Bentley warns that lowering it too far damages the column supports.
Glove compartment support frame.
Defroster outlets at the base of the windscreen: pry them out and remove the screw below each.
Mounting bolts at the left and right ends of the dashboard (one or two each side, depending on the model).
Lift the dashboard out slowly, checking that every connector and harness is disconnected.

Label every connector and bag every set of screws as they come out. Photos at each step make reassembly much easier.

Wiring: remove bad previous-owner wiring (alarms, audio), re-wrap brittle harness tape with cloth harness tape, and run any new wiring (gauges, audio) now.
Heater box flap foam: if bits of foam blow out of the vents, the flap seals have broken down. With the dash out, the heater box is much easier to reach.
Heater core: you can replace it now too, although it doesn’t require dash removal. Part numbers by VIN on RealOEM (Heater and air conditioning).
Sound deadening on the bulkhead and front floor. See the sound deadening guide.

A good used dashboard: the usual route. Check carefully for fine cracks, especially around the passenger airbag cover and the defroster vents, and make sure it matches your car’s airbag configuration.
Flocking: a matt, glare-free finish applied by a specialist.
Re-trimming: covered in leather, vinyl or Alcantara by a trim shop.

Transfer vents, clips and brackets to the replacement on the bench before fitting it.

Installation is the reverse of removal (Bentley), with these points:

New steering column shear bolts.
Steering wheel: align your marks, make sure the airbag contact reel’s locking pin engages its cutout, and don’t over-tighten the centre bolt. Use the torque in your workshop manual.
Airbags: fit them as Bentley’s airbag section describes.
Reconnect every connector as you go, and test the cluster and the heating controls before the trim goes back on.
Reconnect the battery last. With the ignition on, the airbag warning light must go out after its self-test. If it stays on, the fault must be found and cleared before the car is driven.
